TRACHEOFIX

CE Medical Device, class IIa. Latex free.

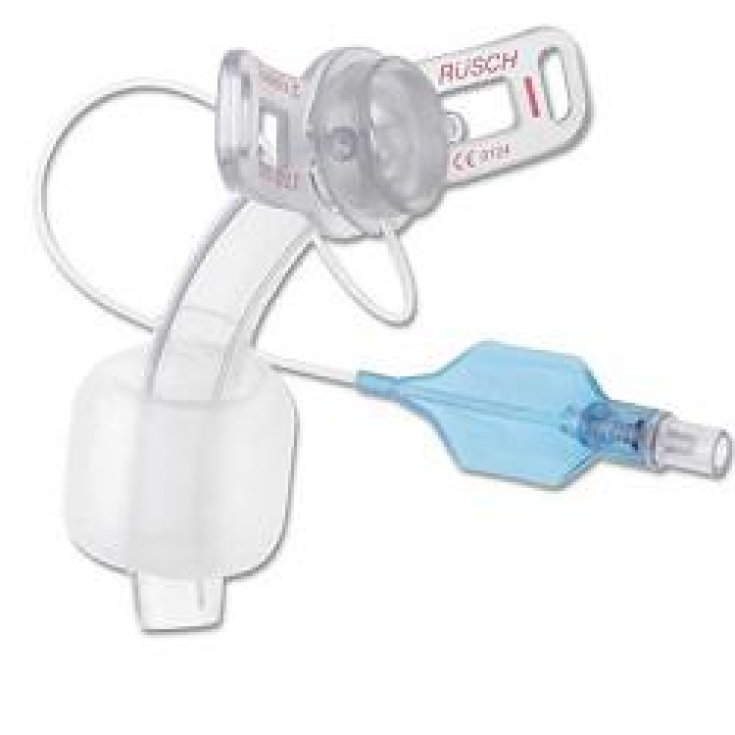

Set with tracheostomy tube, cuffed, not windowed; Widescope cylindrical low pressure / high volume hood in soft PVC; semi-rigid, transparent cannula body in thermosensitive PVC with “Arctic Air” surface, arched shape and tapered tip; radiopaque line; anatomically shaped fixing flange, soft and with openings on the fixing tabs; flexible attachment; marker and color code to identify the size and accessories; n. 2 color-coded counter cannulas with 15 mm long connector; pre-assembled fixing ring; a mandrel with olive tip; Velcro fastening band.

Product Range
Blue Green

Measure	Cannula OF	Cannula DE	Length	Angle cannula	Headphone D.	Counter cannula OF	Counter cannula DE	Color code
7.0	7.2 mm	9.0 mm	70mm	78 °	27	5.5 mm	6.7 mm
8.5	8.7 mm	10.3mm	78 mm	86 °	27	7.0 mm	8.2 mm
10.0	10.2mm	12.3 mm	86 mm	90 °	32	8.5 mm	6.7mm	Red
11.0	11.2mm	13.3 mm	86 mm	88 °	36	9.5 mm	10.7mm	Yellow

storage
Store at room temperature, away from direct exposure to light. Prolonged exposure to fluorescent light, sunlight or heat will damage the device.

Format
Package contents: cannula, cuff, flange, counter cannula, connector, ring, mandrel, band.

Cod. 121400000070/121400000085/121400000100/121400000110
