Description

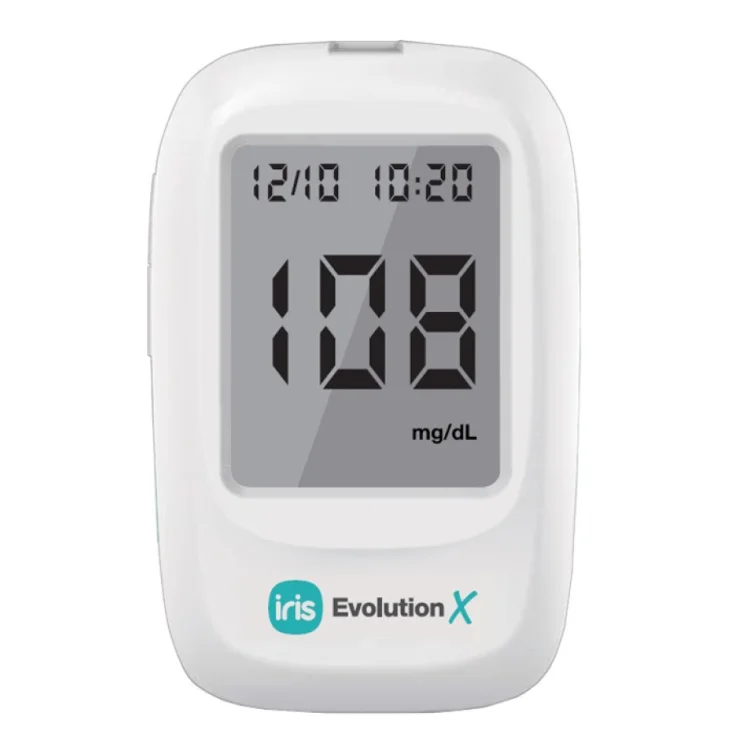

Blood Glucose Monitoring System, designed for easy blood glucose monitoring and helps keep it under control.
The Iris Evolution X blood glucose test is based on the measurement of the electrical current caused by the reaction of glucose with the reagents on the test strip electrode.
The blood sample is drawn into the tip of the test strip by capillary action. The glucose in the sample then reacts with an enzyme and a mediator, generating electrons, which produce a current proportional to the concentration of glucose in the sample. After the reaction time, the glucose concentration in the sample is displayed. The meter is calibrated to display plasma concentration results.
Intended for external use (in vitro diagnostic use), by people with diabetes and by healthcare and clinical professionals to effectively monitor their diabetes. The system should not be used for diagnosing diabetes.

Technical information
10 to 600 mg/dL (0.6 to 33.3 mmol/L) Plasma-equivalent Fresh whole blood (capillary, venous, arterial and neonatal) 1,000 memory with date and time Version 4.2

Measurement range
Calibration
Sample
Sample volume	about 0.5 mcL
During the test	about 5 seconds
Power source	Two 1.5V LR03 AAA batteries
Unit of measurement of glucose	The meter is preset to millimoles per liter (mmol/L) or milligrams per deciliter (mg/dL) depending on the country standard
Memory
Automatic shutdown	2 minutes after the last action
Dimensions	93.5mm x 60.5mm x 20mm
Display size	47mm x 37mm
Weight	Approx. 67.4 g (with battery installed)
Temperature	5-45°C
Operating relative humidity	10-90% (non-condensing)
Hematocrit range	0-70%
Bluetooth

How to use
Set up the meter correctly and have all the necessary materials at hand before starting the test (the Iris Evolution X meter, the Iris Evo test strips and the Iris lancing device with its lancets).

Wash and dry your hands well before starting the test.
Remove one test strip from the vial or foil pouch. Close the bottle lid tightly immediately after removing the test strip. Insert the test strip into the meter in the direction of the arrow. The meter will turn on after a beep.
A test strip symbol with a flashing drop of blood appears on the display to indicate that the meter is ready for testing.
To obtain a fingertip blood sample, adjust the penetration depth to reduce pain.
Remove the lancing device cover. Insert a sterile lancet into the lancing device and push it until the lancet stops completely in the lancing device. Hold the lancet firmly in the lancing device and twist the safety tab on the lancet, then pull the safety tab away from the lancet.
